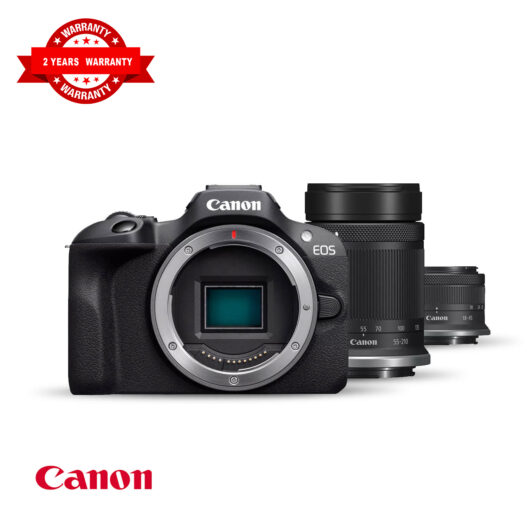

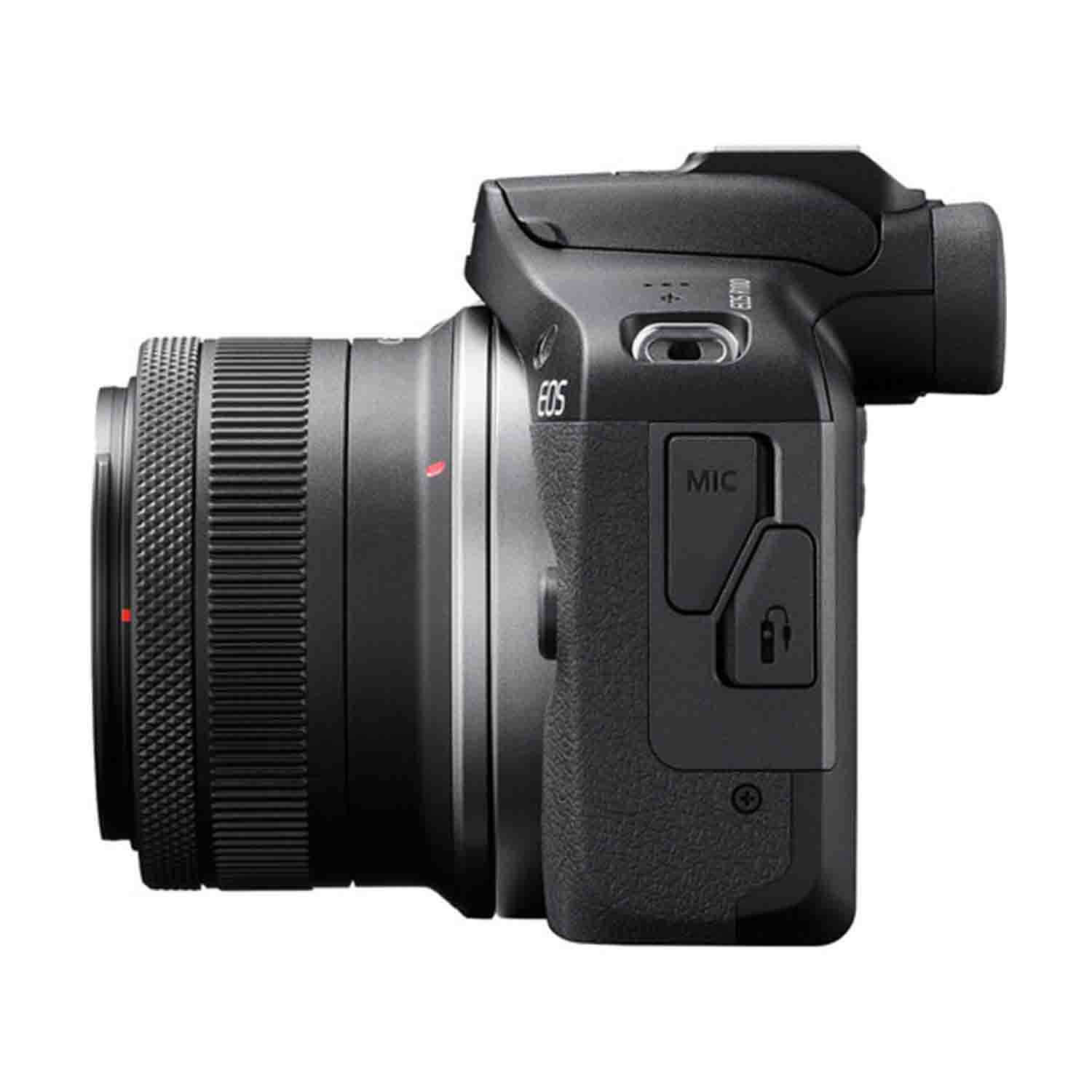

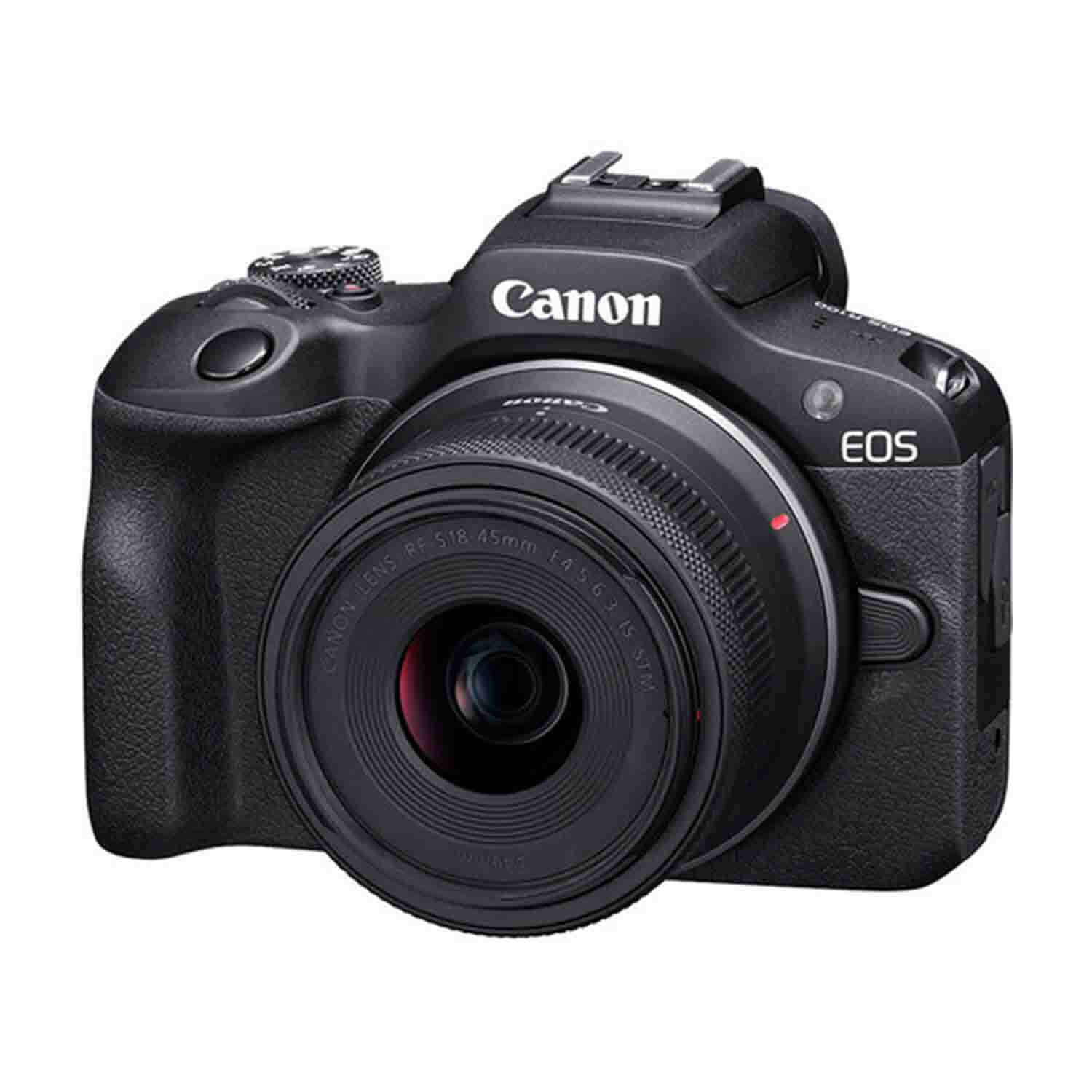

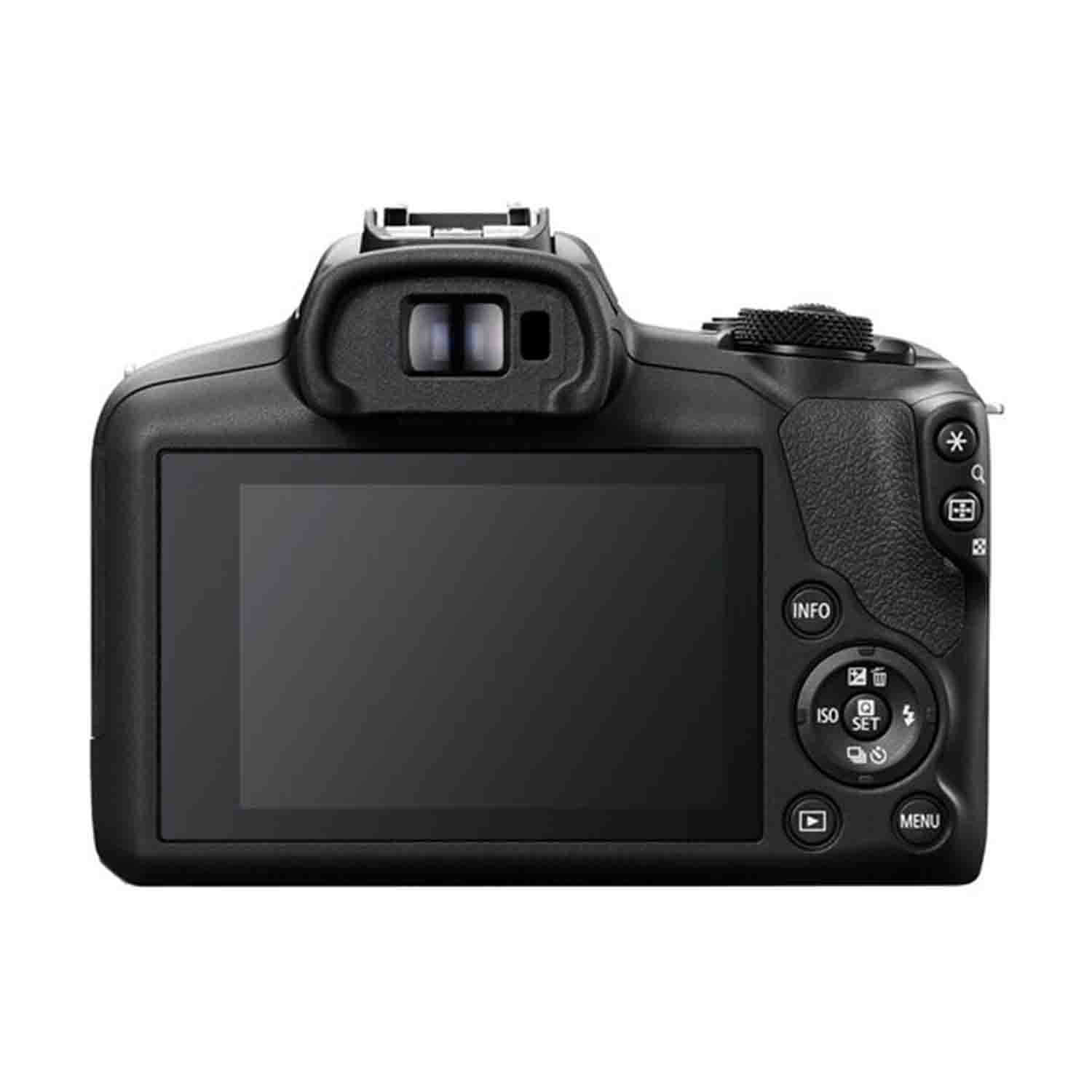

Canon EOS R100 Mirrorless Camera + RF-S 18-45mm IS STM Lens

Image Sensor

• Type : 22.3 x 14.9mm CMOS
• Effective Pixels : Approx. 24.1 megapixels
• Total Pixels : Approx 25.8 megapixels
• Aspect Ratio : 3:2
• Low-Pass Filter : None
• Sensor Cleaning : None
• Colour Filter Type : RGB Primary Colour
• Sensor Shift-IS : No

Image Processor

• Type : DIGIC 8

Lens

• Lens Mount : RF
• Compatibility : RF, RF-S (EF and EF-S lenses compatible via mount adapter)
• Focal Length : Equivalent to 1.6x the 35mm focal length of the lens
• Image Stabilisation : Optical stabilisation with lenses featuring IS
                                         Movie Digital IS: Off / Enabled / Enhanced

Focusing

• Type : Dual Pixel CMOS AF System
              Contrast detection method is used during 4K Movie Servo AF
• Maximum AF Zones (Stills / Movies) : 143 / 117
• AF System / Points : Stills: Maximum 3975 positions

                                        Video: Maximum 3375 positionsMaximum 143/99 points available for automatic selection in Face+Tracking mode. May vary depending on settings.

  Max 25 frames in Zone AF [1]

  Freely position 1 AF point/ 1 AF Zone via manual selection (area available lens dependent)

• AF Working Range : EV -4 – 18 / EV -2 – 18
• AF Modes : One-Shot AF and Servo AF
• AF Point Selection : Face+ Tracking
                                       Spot AF
  1-point AF
  Zone AFStills: Maximum 3975 positions
  Video: Maximum 3375 positionsMaximum 143/99 points available for automatic selection in Face+Tracking mode. May vary depending on settings.Max 25 frames in Zone AF [1]Freely position 1 AF point/ 1 AF Zone via manual selection (area available lens dependent)

• AF Tracking : Humans (Eyes/Face/Head/Body)
• AF Lock : Locked when shutter button is pressed half way or customisable AF Lock Button
• AF Assist Beam : via LED assist beam
• Manual Focus : With RF lenses: Via dedicated AF/MF switch on lens where available, or in menu
                               With EF & EF-S lenses – Select via AF/MF switch on lens
  MF Peaking available
  AF+MF available (Manual focus adjustment after One-Shot AF)
  Magnify image available during MF (3-10x, in 0.1x increments)
• Focus Bracketing : Not provided

Exposure Control

• Metering Modes : Real-time metering from the image sensor
  (1) Evaluative metering (384 zones, 24×16)
  (2) Partial metering at center (approx. 5.8% of Live View Screen)- stills only
  (3) Center weighted average metering
  (4) Spot metering (approx. 2.9% of Live View Screen)
  Partial and spot metering not available in movie
• Metering Brightness Range : Still image: EV -2 – 20
                                                       Movie: EV 0 – 20
• AE Lock: Auto: In One-shot AF mode, exposure is locked as soon as subjects are in focus
                   Manual: By AE lock Button in creative zone or movie modes
• Exposure Compensation : +/-3 EV in 1/3 stop increments
• AEB : 3 shots, +/- 2 EV, 1/3-stop increments
• Anti-flicker Shooting : Yes. Flicker detected at a frequency of 100 Hz or 120 Hz High frequency anti-flicker shooting not provided

• ISO Sensitivity : Normal ISO speed: ISO 100-12800 in 1/3 or 1-stop increments

  Expanded ISO speed: H (equivalent to ISO 25600)

Shutter

• Type : Electronically controlled focal-place shutter (Rolling shutter, using the image sensor). Electronic first curtain, mechanical 2nd curtain
• Speed : 30 – 1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
• Shutter Release : Soft-touch electromagnetic release

White Balance

• Type : Auto white balance with the imaging sensor
• Settings : AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting White balance compensation:
  1. Blue/Amber +/-9
  2. Magenta/Green +/-9
• Shift : Blue/Amber +/-9 levels
              Magenta/ Green +/-9 levels
• Custom White Balance : Yes, select an image on a card for use as a custom white balance
• WB Bracketing : +/- 3 levels, single level increments

Viewfinder

• Type : 0.39-type OLED Electronic Viewfinder
• Dot Count : Approx. 2,360,000 dots
• Coverage (Vertical/Horizontal) : Approx 100%
• Magnification : Approx. 0.95x
• Eyepoint : Approx 22mm
• Dioptre Correction : Approx. -3.0 to +1.0 m-1 (dpt)
• Viewfinder Information : Viewfinder sensor: provided
                                                Vertical display for Stills only. Exposure Simulation
  Customisable and toggle via [INFO] Button
  (1) Liveview image with exposure info
  (2) Liveview image with basic info
  (3) Liveview image with full info
  Customisable settings:
  Grid overlay (x3 formats), Histogram (Brightness/ RGB)
  Viewfinder Brightness: Manually adjustable 1-5
• Depth of Field Preview : Yes
• Eyepiece Shutter : No

LCD Monitor

• Type : 7.5 cm (3.0”) LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots.
• Coverage : Approx 100%
• Brightness Adjustment : Adjustable to one of seven levels
• Touch Screen Operations : No
• Display Options : Customisable and toggle via [INFO] Button
  (1) Liveview image with exposure info
  (2) Liveview image with basic info
  (3) Liveview image with full infoCustomisable settings : Grid overlay (x3 formats), Histogram (Brightness/ RGB)

Flash

• Built-in Flash GN (ISO 100, meters) : 6
• Built-in Flash Coverage : Approx. 18mm angle of view
• Built-in Flash Recycle Time : Approx. 5 seconds
• Modes : Auto
                  Fire
  Off
  E-TTL II flash metering (Evaluative (Face Priority) / Evaluative / Average)
• Red-Eye Reduction : Yes
• X-Sync : 1/250 sec
• Flash Exposure Compensation : +/- 2 EV in 1/3 increments
• Flash Exposure Bracketing : No
• Flash Exposure Lock : Yes
• Second Curtain Synchronisation : Yes
• Multi-Function Shoe / HotShoe / PC Terminal : 5-pin shoe only
• External Flash Compatibility : E-TTL II with EX and EL series Speedlites, wireless multi-flash support
• External Flash Control : Via camera setting/ flash setting menu

Shooting

• Modes : Stills:
                     Scene Intelligent Auto
  Hybrid Auto
  SCN Special Scene Modes (x10)
  P (Program AE)
  Tv (Shutter-priority AE)
  Av (Aperture-priority AE)
  M (Manual exposure, bulb exposure)Movies : Movie auto exposure
  Movie manual exposure
• Picture Styles : Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
• Colour Space : sRGB and Adobe RGB
• Image Processing : Highlight Tone Priority (standard and enhanced)
                                      Auto Lighting Optimizer (4 settings)
  Long exposure noise reduction
  High ISO speed noise reduction (4 settings + Multi Shot NR)
  Lens peripheral illumination correction
  Chromatic aberration correction
  Diffraction correction
  Digital Lens Optimizer (DLO)Creative Assist : Presets
  Background Blur (5 settings)
  Brightness (19 levels)
  Contrast (9 levels)
  Saturation (9 levels)
  Color Tone 1 & 2 (19 levels)
  Monochrome (Off/Black and white/Sepia/Blue/Purple/Green)
• Drive Modes : Single Shooting
                            Continous Shooting
  Self-timer: 10 sec. / remote control
  Self-timer: 2 sec. / remote control
  Self-timer: continuous shooting
• Continuous Shooting : One shot AF: Max. Approx. 6.5 shots/sec with Electronic 1st-curtain shutter, speed maintained for 97 JPEG(All sizes) or 6 RAW, 17 C-RAW, or RAW + L JPEG: 6, C-RAW + L JPEG: 13 images.
  Servo AF: Max. Approx. 3.5 shots/sec.
• Interval Timer : No

File Type

• Still Image Type : JPEG: 8 bits, Standard / Fine: (Exif 2.31 compliant) / Design rule for Camera File system (2.0)
                                   RAW: RAW, C-CRAW (CR3 14 bits)
  Digital Print Order Format [DPOF] Version 1.1 compliant²⁴
• RAW+JPEG Simultaneous Recording : Yes, RAW + various JPEG compression possible
• Image Size : RAW / C-RAW:
                         24.0 megapixels (6000 x 4000)JPEG 3:2:
  L 24 megapixels (6000 x 4000)
  M 10.6 megapixels (3984 x 2656)
  S1 5.9 megapixels (2976 x 1984)
  S2 3.8 megapixels (2400 x 1600)JPEG 4:3:
  L 21.3 megapixels (5328 x 4000)
  M 9.5 megapixels (3552 x 2664)
  S1 5.3 megapixels (2656 x 1992)
  S2 3.4 megapixels (2112 x 1600)JPEG 16:9:
  L 20.2 megapixels (6000 x 3368)
  M 8.9 megapixels (3984 x 2240)
  S1 5.0 megapixels (2976 x 1680)
  S2 3.2 megapixels (2400 x 1344)JPEG 1:1:
  L 16.0 megapixels (4000 x 4000)
  M 7.1 megapixels (2656 x 2656)
  S1 3.9 megapixels (1984 x 1984)
  S2 2.6 megapixels (1600 x 1600)

• Folders : New folders can be created and selected
• File Numbering
  (1) Continuous, Auto Reset
  (2) Manual Reset

Other Features

• Custom Functions : ISO Expansion
                                      Safety shift
  7 customisable buttons
  – Shutter button (half press)
  – Exposure compensation button
  – AE lock button
  – ISO speed setting button
  – Flash button
  – Movie shooting button
  – Drive mode button
  Release shutter without lens
  Retract lens on power off
• Metadata Tag : User copyright information (Author’s Name, Copyright Details)
                               Image rating (0-5 stars)
• LCD Panel / Illumination : No
• Water/Dust Resistance : No
• Voice Memo : No
• Intelligent Orientation Sensor : No
• Playback Zoom : 1.5x – 10x in 15 levels
• Display Formats : Single image with information (toggle options)
                                   Single image
  Index display (4/9/36/100 images)
• SlideShow : Playback time: 1/2/3/5/10/20 seconds
  Repeat: Enable / Disable
  Transition Effects: Off, Slide in 1-2, Fade 1-3
  Background music: Off / On
• Histogram : Brightness/ RGB
• Highlight Alert : Yes
• Image Erase : Single image, select range, Selected images, Folder, Card
• Image Erase Protection
                     Erase: Single image, Selected images, Selected range, folder, All images on card , All found images
  Protection: Selected images, Selected range, All images. Folder
• Self Timer : 2 sec, 10 sec
• Menu Categorie :  Shooting menu
                                   Playback menu
  Communication features menu
  Function settings menu

                                  Display level settings menu
  My Menu
• Menu Languages : 29 Languages
  English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Vietnamese, Indonesian, Hindi, Japanese
• Firmware Update : Firmware update possible by the user via SD card, EOS Utility or Camera Connect app

Interface

• Computer : Hi-Speed USB (USB 2.0), USB Type-C terminal
• Wi-Fi : Wireless LAN (IEEE802.11b/g/n) (2.4 GHz), with Bluetooth 4.2 support Features supported – EOS Utility, Smartphone, Upload to image.canon²⁸, Wireless printing
• Other : HDMI (Micro – Type-D connector), HDR output to compatible TV supported External microphone in (3.5mm stereo mini jack)

Direct Print

• Canon Printers : Canon Compact Photo Printers and PIXMA Printers supporting PictBridge
• PictBridge : PictBridge-compatible (wireless LAN) printer compatible

Storage

• Type : SD, SDHC, SDXC (UHS-I compatible)

Supported Operating System

• PC : See support pages for up-to-date information
• Macintosh : See support pages for up-to-date information

Software

• Image Processing : Digital Photo Professional
• Other : Picture Style Editor, EOS Utility, Image Transfer Utility

             Camera Connect app available on iOS and Android devices

Power Source

• Batteries : 1 x Rechargeable Li-ion Battery LP-E17
• Battery Life
             Viewfinder: Approx. 340 shots (Based on CIPA standards)
  Live view: Approx 430 shots (Based on CIPA standards)
  4K Movie Recording: Approx. 110 mins
  Full HD Movie Recording: Approx 160 mins
  Playback time when playing back a slideshow of still images: Approx. 190 mins(With a new, fully charged LP-E17)
• Battery Indicator : 4 levels
• Power Saving
              Display off (15, 30 sec or 1, 3, 5, 10, 30 mins)
  Auto Power Down (30 sec or 1, 3, 5, 10 mins, Disable)
  Viewfinder off (1, 3 min, disable)
  Power saving mode
• Power Supply & Battery Chargers
             Battery charger LC-E17E
  AC adapter AC-E6N
  DC Coupler DR-E18

Accessories

• Wireless File Transmitter : Not compatible
• Cases / Straps : Protecting cloth PC-E1 / PC-E2
                               Strap provided
• Lenses : RF and RF-S lenses
                  EF and EF-S lenses compatible via adapter
  EF-M lenses not compatible
• Lens Adapters : Mount Adapter EF-EOS R, Drop-in Filter Mount Adapter EF-EOS R
• Flash : EL series Speedlites: EL-1 / EL-100
               EX series Speedlites / Macrolite
  Speedlite Transmitter ST-E3-RT (Ver. 2) / ST-E3-RT / ST-E2
  Off-Camera shoe cord OC-E3

• Remote Controller / Switch : Bluetooth Remote BR-E1

                                                        Tripod grip HG-100TBR
  Remote Switch RS-60E3
• Other : Interface cable IFC-100U
                Interface cable IFC-400U

Physical Specifications

• Body Materials : Mainly polycarbonate resin with glass fibre that incorporates an aliminium alloy
• Operating Environment : 0 – 40 °C, 85% or less humidity
• Dimensions (W x H x D) : 116.3 x 85.5 x 68.8mm
• Weight (Body Only) : Approx. 356 g
