Description
Information of Nikon Z9 Mirrorless Camera (Body only)
Overview
The time has come for the arrival of a true next level flagship mirrorless camera. Fast, powerful, dependable – in an incredible range of scenarios. With its revolutionary real-time Viewfinder with no blackout, its advanced subject detection technology, and high-speed frame capture, never miss a moment with the Z 9. Film up to 125 minutes of non-stop, in-camera, 8K UHD footage and experience the astonishing resolving power of the NIKKOR Z S-line lenses powered by the Z mount to reveal amazingly sharp detail from edge to edge. Shoot in harsh conditions with absolute confidence of never missing a detail. You’ll be ready.
EXPEED 7 Image Processor
Complementing the sensor is an advanced processing engine, the EXPEED 7, which offers speeds approximately 10x faster than a Z 7II. This engine works in conjunction with the stacked sensor design to realize impressively fast AF speeds, burst shooting rates, a high buffer capacity, fluid video performance, and quick all-around handling.
Up to 8K Recording Supported
Matching the high-end photo attributes, the Z9 is Nikon’s most capable video camera as well, with a variety of resolutions and frame rates available up to 8K. Using full pixel readout, UHD 8K 30p video can be recorded with continuous shooting possible for approximately 2 hours 5 minutes.
Full-frame 4K recording is available, too, up to 120p for slow-motion playback. Using an 8K area, oversampled UHD 4K recording is possible at up to 60p for increased sharpness and detail. Also, high-resolution frame grabs can be recorded in camera from 8K and 4K videos, for producing 33MP or 11MP stills, respectively.
Internal N-RAW and ProRes RAW Video
Added with Firmware 2.0, the Z9 is capable of internal 12-bit raw recording at up to 8.3K 60p in the N-RAW format, as well as support for ProRes RAW recording. Raw recording offers greater tonal and color latitude and can improve dynamic range, benefitting color grading needs and post-production flexibility.
- N-RAW is Nikon’s own raw recording format that offers impressively small file sizes compared to other raw formats as well as the ability to create MP4 proxies for more efficient previewing or transferring.
- N-RAW recording is available at up to 8.3K at 60p or 24p; 4.1K at up to 120p; 5.3K at up to 60p with a 1.5x crop; and 3.8K at 120p with a 2.3x crop.
- ProRes RAW recording is also available at up to 4.1K and 60p.
ProRes and H.265 10-Bit Internal Recording
Internal recording with 10-bit color and 4:2:2 sampling is possible in the ProRes 422 HQ and H.265 codecs, and H.264 and 4:2:0 color can be used depending on workflow needs. For more latitude when color grading in post, there is also a 10-bit N-Log setting as well as a Flat color profile. Additionally, HLG (Hybrid Log Gamma) can be used for creating HDR-ready content straight from the camera.
Real-Live Viewfinder
- Real-Live Viewfinder is a an advanced EVF utilizing a 3.69m-dot OLED panel with adjustable luminance up to 3000 cd/m2 for clear visibility in bright conditions. This EVF also works in conjunction with dual-stream technology for blackout-free viewing when shooting continuously. Firmware 2.0 has further improved the finder’s performance with a high fps function, which ups the EVF’s refresh rate to 120 fps for even smoother, lifelike viewing.
Four-Axis Tilting LCD
- A first for Nikon, the Z9 incorporates a 3.2″ 2.1m-dot four-axis tilting touchscreen LCD that better supports working from high and low angles, regardless if shooting in the horizontal or vertical orientation. This screen’s four-way tilting design allows for easier viewing from a variety of positions and the user interface orientation will also shift depending on how the camera is held.
Versatile Connectivity
Matching the professional build quality, the Z9 is fitted with a variety of connectivity options to suit various workflow needs:
- Full-size HDMI port for outputting video to an external recorder or monitor
- USB 3.2 Gen 2 Type-C port supports tethering, data transfer, and in-camera battery charging
- Ethernet port supports 1000BASE-T wired LAN connection for transferring files over FTP
- 10-pin port offers wide accessories and remote connectivity
- PC sync port for flash sync
- Bluetooth and Wi-Fi (2.4 and 5 GHz) permit wireless transferring of files, remote camera control via a mobile device, and works in conjunction with the NX Mobile Air app for file management
- GNSS for in-camera geotagging and recording of location info while shooting
Specifications
| Type | |
|---|---|
| Display SKU | VOA080AG |
| Type | Digital camera with support for interchangeable lenses |
| Lens Mount | Nikon Z mount |
| Picture Angle | Full-frame/FX-format |
| Image Sensor | |
| Sensor Size | 35.9 mm x 23.9 mm |
| Image Sensor Type | Stacked CMOS sensor |
| Total Pixels | 52.37 million |
| Dust-Reduction System | Image sensor cleaning, Image Dust Off reference data (requires NX Studio) |
| Image Area (pixels) | [FX (36 x 24)] selected for image area: (L) 8256 x 5504 ( 45.4 million) (M) 6192 x 4128 ( 25.6 million) (S) 4128 x 2752 ( 11.4 million); [DX (24 x 16)] selected for image area: (L) 5392 x 3592 ( 19.4 million) (M) 4032 x 2688 ( 10.8 million) (S) 2688 x 1792 ( 4.8 million); [1:1 (24 x 24)] selected for image area: (L) 5504 x 5504 ( 30.3 million) (M) 4128 x 4128 ( 17.0 million) (S) 2752 x 2752 ( 7.6 million); [16:9 (36 x 20)] selected for image area: (L) 8256 x 4640 ( 38.3 million) (M) 6192 x 3480 ( 21.5 million) (S) 4128 x 2320 ( 9.6 million) |
| Effective Pixels (Megapixels) | 45.7 million |
| Image Sensor Format | Full-frame/FX-format |
| File System | |
| File Format Still Images | JPEG: JPEG-Baseline compliant with fine (approx. 1:4), normal (approx. 1:8), or basic (approx. 1:16) compression; size-priority and optimal-quality compression available NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats NEF (RAW): 14 bit with lossless, high-efficiency*, or high-efficiency compression |
| Picture Control | Auto, Standard, Neutral, Vivid, Monochrome, Portrait, Landscape, Flat, Creative Picture Controls (Dream, Morning, Pop, Sunday, Somber, Dramatic, Silence, Bleached, Melancholic, Pure, Denim, Toy, Sepia, Blue, Red, Pink, Charcoal, Graphite, Binary, Carbon); selected Picture Control can be modified; storage for custom Picture Controls |
| File System | DCF 2.0, Exif 2.32 |
| Storage Media | CFexpress (Type B) XQD Type Memory |
| Card Slot | 2 CFexpress cards or XQD cards. The card in Slot 2 can be used for overflow or backup storage, for separate storage of NEF (RAW) and JPEG pictures, or for storage of duplicate JPEG pictures at different sizes and image qualities; pictures can be copied between cards |
| Viewfinder | |
| Viewfinder | 1.27-cm/0.5-in. approx. 3690k-dot (Quad VGA) OLED electronic viewfinder with color balance and auto and 16-level manual brightness controls |
| Eye Sensor | Automatically switches between monitor and viewfinder displays |
| Compatible Lenses | Z mount NIKKOR lenses F mount NIKKOR lenses (mount adapter required; restrictions may apply) |
| Viewfinder Diopter Adjustment | -4 – +3 m(*1) |
| Viewfinder Eyepoint | 21 mm (-1.0 m-1; from rearmost surface of viewfinder eyepiece lens) |
| Viewfinder Magnification | Approx. 0.8x (50 mm lens at infinity, -1.0 m -1) |
| Viewfinder Frame Coverage | Approx. 100% horizontal 100% vertical |
| Shutter | |
| Shutter Type | Electronic shutter with shutter sound and sensor shield |
| Frame Advance Rate | 1/32000 to 30 s (choose from step sizes of 1/3, 1/2, and 1 EV, extendable to 900 s in mode M), bulb, time |
| Shutter Release Modes | S (single frame), CL (continuous low-speed), CH (continuous high-speed), High-speed frame capture, Self-timer |
| Flash Sync Speed | Flash synchronizes with shutter at speeds of 1/250 or 1/200 s or slower (but note that the guide number drops at speeds of 1/200 to 1/250 s); sync speeds as fast as 1/8000 s are supported with auto FP high-speed sync. *Depending on the shutter speed, horizontal lines may appear in pictures when using auto FP high-speed sync. |
| Continuous Shooting Options | Up to 120 fps; Continuous low-speed: Approx. 1 to 10 fps, Continuous high-speed: Approx. 10 to 20 fps, High-speed frame capture (C30): Approx. 30 fps, High-speed frame capture (C120): Approx. 120 fps * Maximum frame advance rate as measured by in-house tests. |
| Shutter Speed | Flash synchronizes with shutter at speeds of 1/250 or 1/200 s or slower (but note that the guide number drops at speeds of 1/200 to 1/250 s); sync speeds as fast as 1/8000 s are supported with auto FP high-speed sync. *Depending on the shutter speed, horizontal lines may appear in pictures when using auto FP high-speed sync. |
| Self-timer | 2 s, 5 s, 10 s, 20 s; 1 to 9 exposures at intervals of 0.5, 1, 2, or 3 s |
| Slowest Shutter Speed | 900 sec |
| Fastest Shutter Speed | 1/32000 sec |
| Top Continuous Shooting Speed at Full Resolution | 20 fps |
| Exposure | |
| Exposure Metering | TTL metering using camera image sensor |
| Exposure Modes | Matrix metering; Center-weighted metering: Weight of 75% given to 12- or 8-mm circle in center of frame or weighting can be based on average of entire frame; Spot metering: Meters circle with a diameter of approx. 4-mm centered on selected focus point; Highlight-weighted metering |
| Exposure Lock | Luminosity locked at detected value |
| Exposure Compensation | -3 to +3 EV in steps of 1/3 or 1/2 EV |
| Metering Range | -3 to +17 EV |
| Sensitivity | |
| ISO Sensitivity | ISO 64 to 25600 in steps of 1/3 or 1 EV; can also be set to (Recommended Exposure Index) approx. 0.3, 0.7 or 1 EV (ISO 32 equivalent) below ISO 64 or to approx. 0.3, 0.7, 1 or 2 EV (ISO 102400 equivalent) above ISO 25600; auto ISO sensitivity control available |
| Active D-Lighting | Can be selected from: Auto High Normal Low Off Extra high 2 Extra high 1 |
| Highest Standard ISO Sensitivity | 25600 |
| Lowest Standard ISO Sensitivity | 64 |
| Focus / Autofocus | |
| Focus Point | 493 points |
| Focus Modes | Pinpoint AF, single-point AF, dynamic-area AF (S, M and L), wide-area AF (S and L), auto-area AF, 3D-tracking and subject-tracking AF (available in video mode only); Pinpoint AF, dynamic-area AF |
| AF-Area Mode | Pinpoint AF, single-point AF, dynamic-area AF (S, M and L), wide-area AF (S and L), auto-area AF, 3D-tracking and subject-tracking AF (available in video mode only); Pinpoint AF, dynamic-area AF and 3D-tracking are available in photo mode only |
| Lens Servo | Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF (AF-C); full-time AF (AF-F; available only in movie mode); predictive focus tracking Manual focus (M): Electronic rangefinder can be used |
| VR (Vibration Reduction) Image Stabilization | 5-axis image sensor shift |
| Detection Range | -6.5 to +19 EV (-8.5 to +19 EV with starlight view (Measured in photo mode at ISO 100, f/1.2 lens, at a temperature of 20 °C/68 °F) |
| Autofocus System | Hybrid phase-detection/contrast AF with AF assist |
| Maximum Autofocus Areas/Points | 493 |
| Features | Animal Eye AF, 4K UHD, WiFi, Bluetooth |
| Flash | |
| Flash Compensation | -3 to +1 EV in steps of 1/3 or 1/2 EV |
| Flash-ready Indicator | Lights when optional flash unit is fully charged; flashes as underexposure warning after flash is fired at full output |
| Accessory Shoe | ISO 519 sync terminal with locking thread |
| Flash Control | TTL: i-TTL flash control; i-TTL balanced fill-flash is used with matrix, center-weighted, and highlight-weighted metering, standard i-TTL fill-flash with spot metering |
| Flash Sync Modes | Front-curtain sync, slow sync, rear-curtain sync, red-eye reduction, red-eye reduction with slow sync, off |
| Nikon Creative Lighting System (CLS) | i-TTL flash control, radio-controlled Advanced Wireless Lighting, optical Advanced Wireless Lighting, modeling illumination, FV lock, Colour Information Communication, Auto FP High-Speed Sync, unified flash control |
| Flash Sync Terminal | Yes |
| White Balance | |
| White Balance | Auto (3 types), Choose colour temperature (2,500 K–10,000 K), Cloudy, Direct sunlight, Flash, Fluorescent (3 types), Incandescent, Natural light auto, Preset manual (up to 6 values can be stored) all with fine-tuning, Shade |
| White Balance Bracketing | 1 |
| Movie | |
| Movie | 8K UHD 7,680×4,320 / 30p (progressive), 8K UHD 7,680×4,320 / 25p, 8K UHD 7,680×4,320 / 24p, 4K UHD 3,840×2,160 / 60 fps, 4K UHD 3,840×2,160 / 50 fps, 4K UHD 3,840×2,160 / 30 fps, 4K UHD 3,840×2,160 / 25 fps, 4K UHD 3,840×2,160 / 24 fps, Full HD 1,920×1,080 / 120 fps, Full HD 1,920×1,080 / 100 fps, Full HD 1,920×1,080 / 60 fps, Full HD 1,920×1,080 / 50 fps, Full HD 1,920×1,080 / 30 fps, Full HD 1,920×1,080 / 25 fps, Full HD 1,920×1,080 / 24 fps, Actual frame rates for 120p, 100p, 60p, 50p, 30p, 25p, and 24p are 119.88, 100, 59.94, 50, 29.97, 25, and 23.976 fps respectively |
| Movie Metering | TTL exposure metering using main image sensor |
| Time-Lapse Movie | Yes |
| Movie HDMI Output | Type-A HDMI connector |
| Movie Log Gamma Output | N-Log or HLG videos are recorded to “memory card”. When NOT using memory card in Z 9 and using external recorder: N-Log or HLG video are recorded to “external recorder via HDMI-output”. When using both memory card in Z9 and external recorder: N-Log or HLG video are recorded to both “memory card” and “external recorder via HDMI-output”. However, If you select 8K30p/25p/24p or 4K120p/100p, the recording frame size for HDMI-output is change to FHD. For example, if you select 8K30p, memory card is 8K30p and HDMI-output is FHD30p, if you select 4K60p, memory card is 4K60p and HDMI-output is 4K60p. |
| Time Code | Yes |
| Movie Active D-Lighting | Extra high, High, Normal, Low, and Off |
| Movie ISO | M mode: Manual selection (ISO 64 to 25600 in steps of 1/3 or 1 EV); with additional options available equivalent to approx. 0.3, 0.7, 1 or 2 EV (ISO 102400 equivalent) above ISO 25600; auto ISO sensitivity control (ISO 64 to Hi 2.0) available with selectable upper limit; P, S or A mode: Auto ISO sensitivity control (ISO 64 to High 2.0) with selectable upper limit |
| Movie Audio | Built-in stereo or external microphone with attenuator option; sensitivity adjustable |
| Movie Audio Recording Format | Linear PCM (for videos recorded in MOV) or AAC (for videos recorded in MP4) |
| Movie Video Compression | N-RAW (12 bit), Apple ProRes RAW HQ (12 bit), Apple ProRes 422 HQ (10 bit), H.265/HEVC (8 bit/10 bit), H.264/AVC (8 bit) |
| Movie File Format | Linear PCM, AAC |
| Movie Maximum Recording Time | 2 hours 5 minutes |
| Movie Frame size (pixels) and frame rate | • 7680×4320 (8K UHD); 30p (progressive), 25p, 24p • 3840×2160 (4K UHD); 120p, 100p, 60p, 50p, 30p, 25p, 24p • 1920 × 1080; 120p, 100p, 60p, 50p, 30p, 25p, 24p; Actual frame rates for 120p, 100p, 60p, 50p, 30p, 25p, and 24p are 119.88, 100, 59.94, 50, 29.97, 25, and 23.976 fps respectively |
| AF for Movie | AF Speed and AF Tracking Sensitivity can be adjusted |
| Monitor | |
| Monitor Size | 8 cm / 3.2 in., approx. 2100k-dot vertically and horizontally tilting TFT touch-sensitive LCD with 170° viewing angle, approx. 100% frame coverage, and colour balance and 11-level manual brightness controls |
| Monitor Resolution | Approx. 2100 k-dot |
| Monitor Type | Vertically and horizontally tilting TFT touch-sensitive LCD with 170° viewing angle, approximately 100% frame coverage, and color balance and 11-level manual brightness controls |
| Monitor Angle of View | 8 -cm ( 3.2 –in.) diagonal |
| Playback | |
| Voice Memo Function | Yes |
| Playback Functions | Full-frame and thumbnail (up to 4, 9, or 72 pictures) playback with playback zoom, playback zoom cropping, video playback, histogram display, highlights, photo information, location data display, auto picture rotation, picture rating, voice memo input and playback, and IPTC information embedding and display |
| Interface | |
| Interface | USB: Type C USB connector (SuperSpeed USB); connection to built-in USB port is recommended Audio Input: Stereo mini-pin jack (3.5 mm diameter; plug-in power supported) Audio Output: Stereo mini-pin jack (3.5 mm diameter) Type A HDMI connector 10 pin remote terminal: Built-in |
| Wi-Fi Functionality | Standards: IEEE 802.11b/g/n (Africa, Asia, Bolivia, and Oceania); Standards: IEEE 802.11b/g/n/a/ac (Europe, U.S.A., Canada, Mexico); Standards: IEEE 802.11b/g/n/a (other countries in the Americas) Operating frequency: 2412–2462 MHz (channel 11; Africa, Asia, Bolivia, and Oceania) Operating frequency: 2412–2462 MHz (channel 11) and 5180–5805 MHz (other countries in the Americas) Operating frequency: 2412–2462 MHz (channel 11) and 5180–5825 MHz (U.S.A., Canada, Mexico) Operating frequency: 2412–2462 MHz (channel 11) and 5745–5805 MHz (Georgia) Operating frequency: 2412–2462 MHz (channel 11) and 5180–5320 MHz (other European countries) Maximum output power (EIRP): 2.4 GHz band: 8.4 dBm Maximum output power (EIRP): 5 GHz band 6.0 dBm (Georgia) Maximum output power (EIRP): 5 GHz band: 9.0 dBm (other countries) Authentication: Open system, WPA2-PSK, WPA3-SAE |
| Smart Device App Connectivity | SnapBridge |
| GPS | Via the SnapBridge app; Built-in |
| Menus | |
| Supported Languages | English |
| Power | |
| Battery / Batteries | EN-EL18d rechargeable Li-ion battery; EN-EL18c, EN-EL18b, EN-EL18a,and EN-EL18 batteries can also be used. Note, however, that fewer pictures can be taken on a single charge than with the EN-EL18d. |
| Battery Life (shots per charge) | [Viewfinder only] selected for monitor mode with: [ON] selected for [Energy saving (photo mode)] in the setup menu: Approx. 740 shots; [Viewfinder only] selected for monitor mode with: [OFF] selected for [Energy saving (photo mode)] in the setup menu: Approx. 700 shots; [Monitor only] selected for monitor mode with: [ON] selected for [Energy saving (photo mode)] in the setup menu: Approx. 770 shots; [Monitor only] selected for monitor mode with: [OFF] selected for [Energy saving (photo mode)] in the setup menu: Approx. 740 shots; Photo Mode (Burst Photography): Number of Shots: Approx. 5310 shots; Movies: [Viewfinder only] selected for monitor mode: Approx. 170 minutes; [Monitor only] selected for monitor mode: Approx. 170 minutes |
| AC Adapter | EH-7P Charging AC Adapter; EH-7P Charging AC adapter can be used to charge EN-EL18d, EN-EL18c and EN-EL18b batteries only. |
| Battery Charger | MH-33 Battery Charger |
| Miscellaneous | |
| Weight (g) (body only)*1 | 1340 g (47.3 oz.); Approx. 1340 g (2 lb. 15.3 oz.) with battery and memory card but without body cap and accessory shoe cover; Approx. 1160 g (2 lb. 9 oz.) camera body only |
| Length x height x width (mm) (body only)* | 149 mm (5.9 in.) x 149.5 mm (5.9 in.) x 90.5 mm (3.6 in.) |

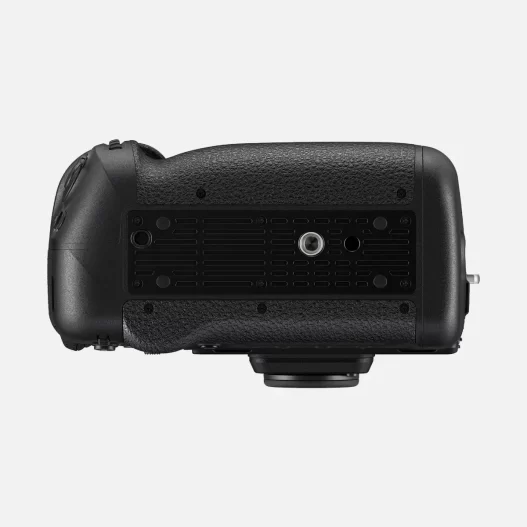

| Tripod Socket | 0.635 cm (1/4 in., ISO 1222) |
| Animal Eye AF | Yes |
| 4K UHD | Yes |
| WiFi | Yes |
| Bluetooth | Communication protocols: Bluetooth Specification Version 5.0; Operating frequency: Bluetooth: 2402–2480 MHz; Bluetooth Low Energy: 2402–2480 MHz; Maximum output power (EIRP) Bluetooth: 2.9 dBm, Bluetooth Low Energy: 1.4 dBm |
